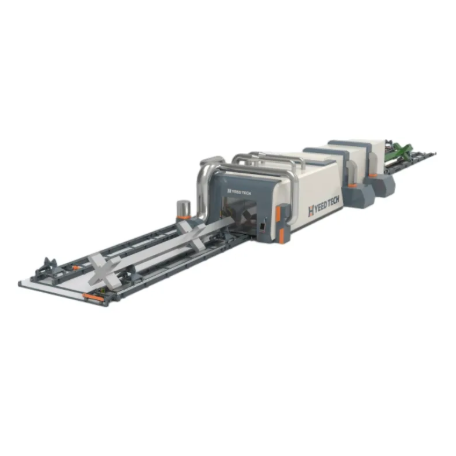

Energy-saving Optimization Scheme for Automatic Painting Line

In the modern industrial landscape, the drive towards greater efficiency and sustainability is paramount. For manufacturers of steel structures, the painting process represents a critical—and often resource-intensive—stage. It is here that intelligent automation steps in, not merely to replace manual labor but to revolutionize the entire workflow with precision, consistency, and significant resource conservation. Yeed Tech Co., Ltd., as an emerging technology enterprise dedicated to intelligent solutions for steel structure production processes, stands at the forefront of this transformation. The company has developed a series of new processing equipment that integrates automation, intelligence, integration, and safety to replace traditional manual labor across cutting, forming, welding, and painting of structural steel. This article delves into a comprehensive energy-saving optimization scheme centered on their advanced automatic painting line, a core component of their product portfolio which also includes intelligent cutting lines, high-power laser cutting machines, and smoke control systems.

Strategic Efficiency: Core Principles of an Optimized Painting System for Steel Structure

An optimized painting system for steel structure is not a single machine but a holistic, interconnected line designed for maximum throughput with minimal waste. The energy-saving philosophy is embedded at every stage:

• Process Integration:The line is designed as a continuous flow, from pre-treatment and drying to priming and top-coating, minimizing the energy lost in transferring components between disparate, non-synchronized stations.
• Adaptive Conveyance:Utilizing variable frequency drives (VFDs) on conveyors and chain systems ensures motors only consume power proportional to the required speed and load, eliminating the constant high-energy draw of traditional systems.
• Recuperative Thermal Management:In oven and drying zones, heat recovery systems capture exhaust thermal energy to preheat incoming air, dramatically reducing the fuel or electricity required to maintain optimal curing temperatures.
• Demand-Based Ventilation:Instead of operating at full capacity continuously, ventilation and filtration systems in spray booths are calibrated to respond dynamically to actual spraying activity, cutting down on massive fan energy consumption.

Precision Through Intelligence: The Role of Automated Painting Line and Path Planning

The greatest source of waste in painting of structural steel has historically been overspray. Manual spraying is inherently imprecise. Yeed Tech’s solution hinges on intelligent precision. The heart of this is an advanced automatic painting line equipped with a sophisticated automatic scanning system.

• 3D Component Mapping:This system can intelligently identify the three-dimensional structure of components in all directions through 3D scanning, preparing for painting. It creates a precise digital twin of each unique steel element, regardless of its complexity.
• Optimal Path Generation:Software algorithms then calculate the most efficient robotic spray path. This ensures complete coverage while minimizing redundant passes and drastically reducing overspray.
• Dynamic Adjustment:For variable batches, the system can adapt in real-time, optimizing the sequence and technique for different shapes on the same line without manual reprogramming delays. This system solves the problems of high labor intensity, low efficiency, large number of people, unstable coating quality, poor uniformity, and waste of paint that exist in manual spraying.

Quality and Conservation: Tangible Outcomes of an Advanced Painting System for Steel Structure

Deploying an optimized line yields direct, measurable benefits that align economic and environmental goals. The advantages of a system like Yeed Tech’s are clear and quantifiable.

• Material Savings:Precise path planning and consistent application directly translate to saving paint. Reduction in overspray can typically reach 20-30% compared to manual methods, lowering material costs and VOC emissions.
• Energy Reduction:The integrated energy-saving measures in conveyance, thermal management, and ventilation contribute to a substantial decrease in the line’s total kilowatt-hour consumption per ton of painted steel.
• Superior Coating Quality:It has the advantages of low labor force, high spraying efficiency, good spraying quality, and uniform coating. This eliminates runs, sags, and dry spots, ensuring superior corrosion protection and longevity, which in turn reduces the energy and material burden of premature repainting.
• Operational Efficiency:High spraying efficiency and low labor force requirements lead to faster throughput and a smaller operational footprint, achieving a balance between quality, quantity, and cost. The automatic painting line becomes a predictable, controlled process.

FAQs About Our Automated Painting Line Solutions

How does the automatic painting line ensure consistent quality on complex structural steel shapes?

The line utilizes a 3D scanning system that creates a precise digital model of each component. The robotic喷涂 arms then follow a programmed path based on this model, ensuring every surface receives the exact same coat thickness and overlap, regardless of shape complexity, eliminating human error and fatigue.

What are the primary energy-saving features of your painting system for steel structure?

Key features include variable-speed drives on all motors, heat recovery systems in drying ovens, and demand-controlled ventilation in spray booths. These systems work in concert to reduce electricity and thermal energy consumption by ensuring power is used only when and where it is needed.

Can your system handle the high-volume, varied production typical in painting of structural steel?

Absolutely. The system is designed for large-volume production. The intelligent scanning and quick-programming robotics allow for rapid changeover between different steel profiles. The line maintains high efficiency whether processing a batch of identical beams or a mix of different components.

How significant is the paint saving with an optimized automatic painting line?

Paint savings are a major benefit. Through minimized overspray and optimal application thickness, users typically report a reduction in paint usage of 20% to 30%. This directly lowers material costs and reduces the environmental impact associated with solvent and material waste.

What makes this painting system for steel structure an "intelligent" solution?

Intelligence is derived from the integration of 3D perception, adaptive software, and automated execution. The system doesn't just perform a fixed task; it "sees" each component, "plans" the most efficient way to paint it, and "executes" with consistent precision, all while collecting data for further process optimization and traceability.

The journey towards sustainable and cost-effective manufacturing in the steel industry is inextricably linked to technological innovation. For the critical painting of structural steel, moving from manual, variable processes to a fully optimized automatic painting line is no longer a luxury but a strategic imperative. As demonstrated by the solutions from Yeed Tech Co., Ltd., a modern painting system for steel structure integrates advanced scanning, intelligent robotics, and systemic energy recovery to deliver unparalleled efficiency. It achieves the crucial triple balance: exceptional and uniform coating quality for long-term asset protection, high throughput for productivity, and significant reductions in labor, material, and energy costs. This holistic optimization scheme represents the future of industrial finishing—a future where precision engineering delivers both economic and environmental dividends.
